00. overview

Trichter is a civic building for food security in Springdale, designed as a sister to the Market Center of the Ozarks. Where the Market Center handles efficiency and distribution, this building handles education, cultural food traditions, and the ecological cycles behind food: water collection and reuse made visible, gardens, a greenhouse, and compost, so nothing is wasted. The 14,200 sq ft program mixes a demonstration kitchen, classrooms and a workshop, a cafe, a market, retail and a gallery, a food storage and distribution hub, and a 2,400 sq ft greenhouse and gardener lab, with a teaching garden, market plaza, and rain gardens outside.

Done in collaboration with Chris Sanchez. As an integrated studio project it is resolved as a full building: occupancy and egress, structure, mechanical and geothermal systems, stormwater, daylight analysis, and detail wall sections are all drawn in the final set below.

01. site and plan

The plan is radial. Wedge shaped volumes open from a circular greenhouse and teaching garden, with the market as shared ground between them, rain gardens to the east, and parking to the north. The site sits in the 14 acre Luther George Park, the largest green space in downtown Springdale, linked to the 40 mile Razorback Greenway.

02. section and construction

Section and construction: a concrete base carries a mass timber frame above it. Pitched, faceted volumes are linked by shaded paths and canopies, and the wall section is drawn down to its wall and window conditions.

03. interiors

00. overview

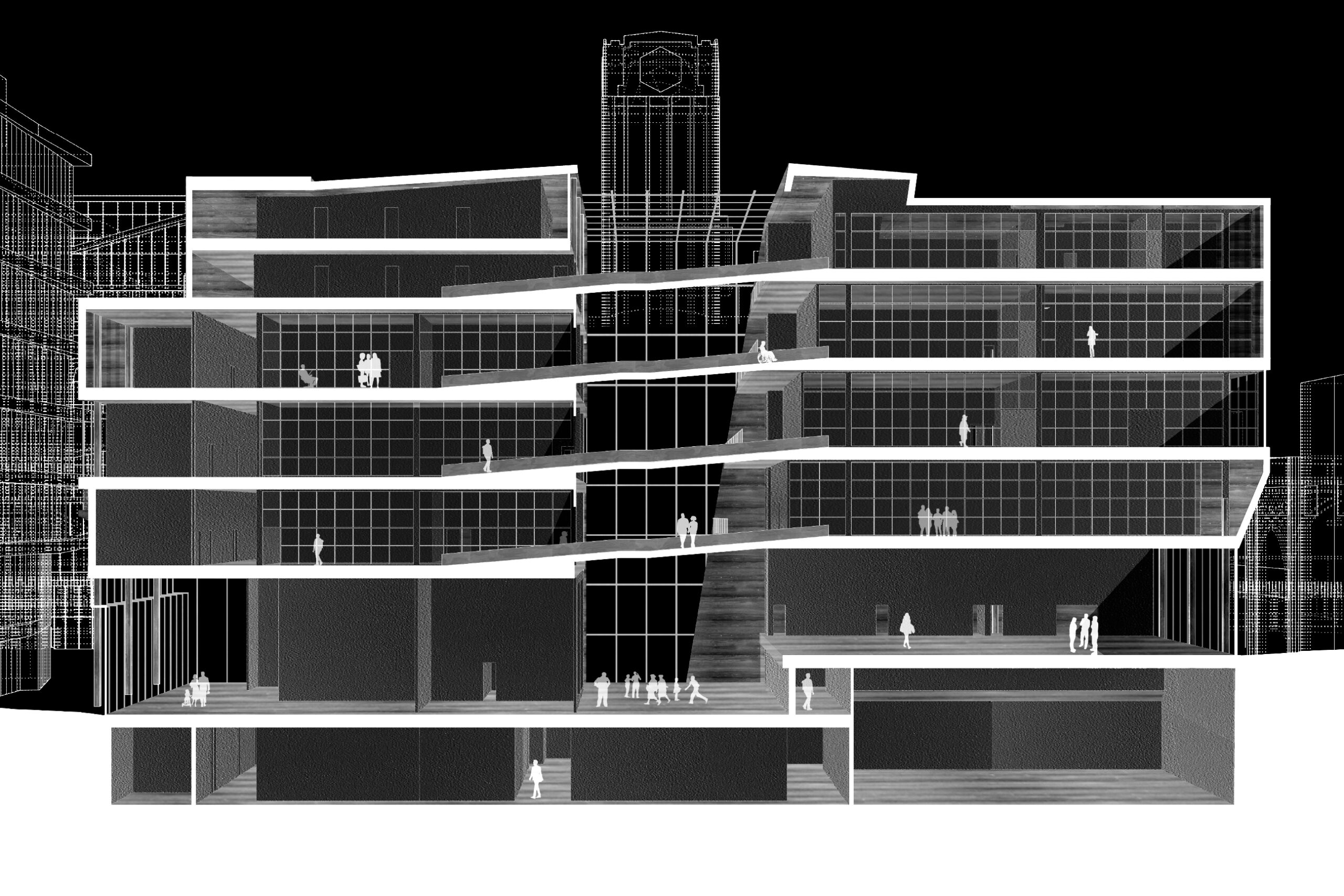

Splack: to split, and stack. Like a shuffled deck of cards, the two programs are first split apart, then shuffled together and stacked, so shared functions sit close to each other and department specific spaces stay local to their department. The form was treated the same way: two separate masses, split, shifted, and restacked to answer context, climate, and community. Half of the site is given to a dense urban forest instead of pavement. The building is meant to welcome the city with its public programs visible from the street.

01. facade studies

Three trials for the envelope. The finished facade grades visibility in three conditions, named on the COTE boards: filtered, semi transparent zones behind copper louvers; transparent, full glazing along circulation and public programs such as the library; and opaque, solid massing and timber walls for quiet, focused rooms. The louvers shade the glazing and limit solar heat gain.

02. floor plans

Plans for each level of the Splack. The auditorium, model shop, cafe, kitchen, and lobby sit low in the building. Classrooms, studios, crit spaces, libraries, and labs fill the middle floors, including a soil lab, a GIS study room, and data and environmental performance labs. Exhibits, a collaborative research area, an outdoor community garden, and greenhouse thermal studies sit near the top, with offices and administration on level 06. A tapered central light well brings daylight down through every floor.

03. COTE submission boards

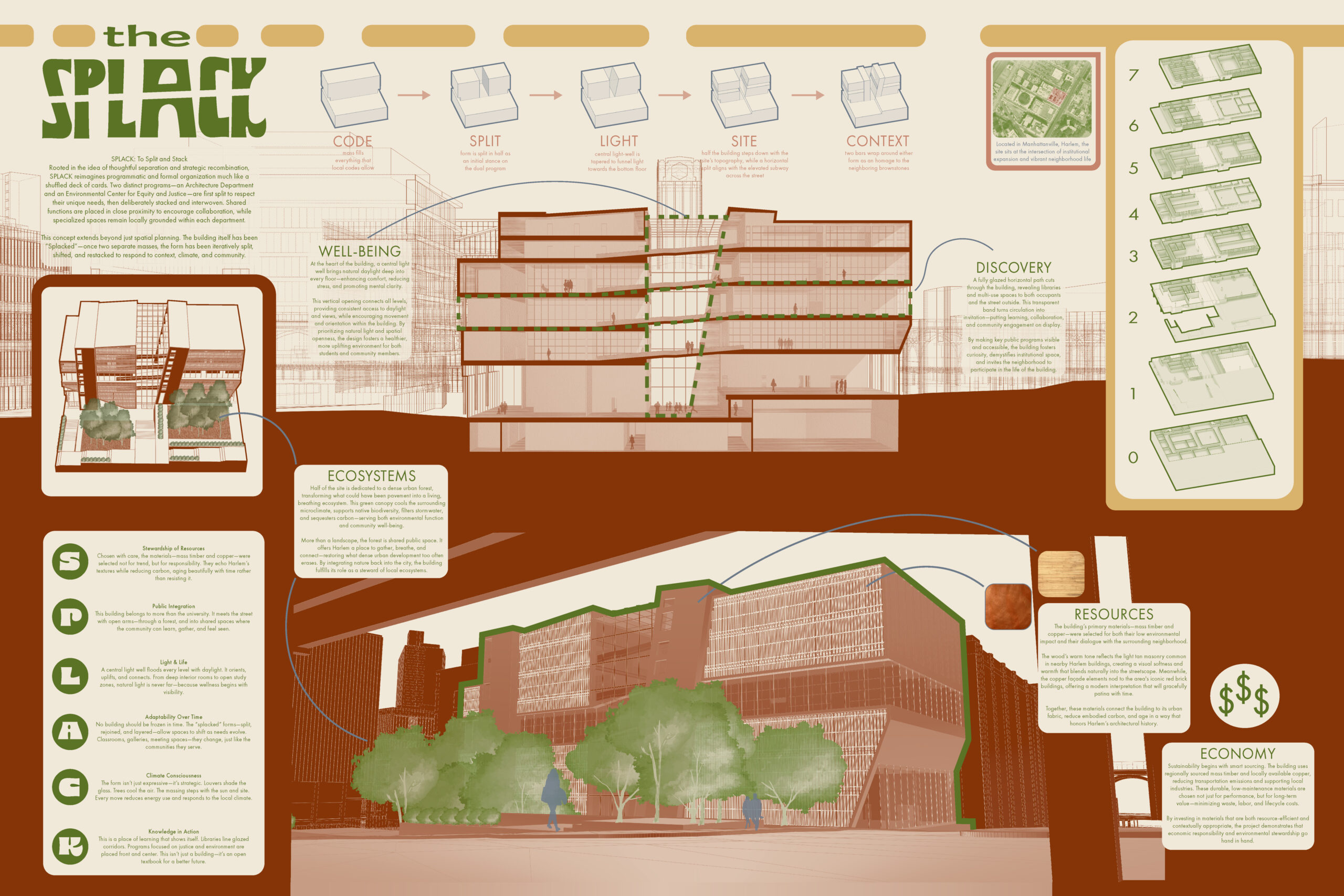

Boards prepared for COTE, the AIA Committee on the Environment, under the AIA Framework for Design Excellence. The form sequence is drawn at the top of board 01: Code, Split, Light, Site, Context. Below it the boards make the case in detail: the urban forest cools the microclimate, filters stormwater, and sequesters carbon, bioswales under it slow stormwater into the soil, and mass timber and copper are chosen for low embodied carbon and for their fit with Harlem masonry and red brick.

00. overview

bar_vista works at three scales in the Mar Vista tract, a Los Angeles postwar tract originally built as 102 nearly identical homes. First one house is documented in depth. Then its lot is rebuilt to hold three households. Then the whole tract is redesigned at 30 to 45 dwelling units per acre. At every scale, one question is trying to be answered: how can a low density suburb take on more housing while maintaining privacy, light, air, outdoor space, and accessibility for the people who live there.

01. house

Step 01 of the project was documentation of one assigned house from the Mar Vista tract. An in-depth analysis of the house, down to its construction details and a digital model informed by that analysis. Then a fictional narrative was created imagining an occupancy of that home.

02. houses

Step 02: ECOVISTA. The lot becomes a triplex: the existing house stays, and two units are added for two new households. The fictional occupancy scenario develops into: The Support Network. Three households that support each other, with one unit being planned for a resident who uses a wheelchair. The layout of the triplex ensures privacy when desired, yet encourages use of shared spaces.

03. housing

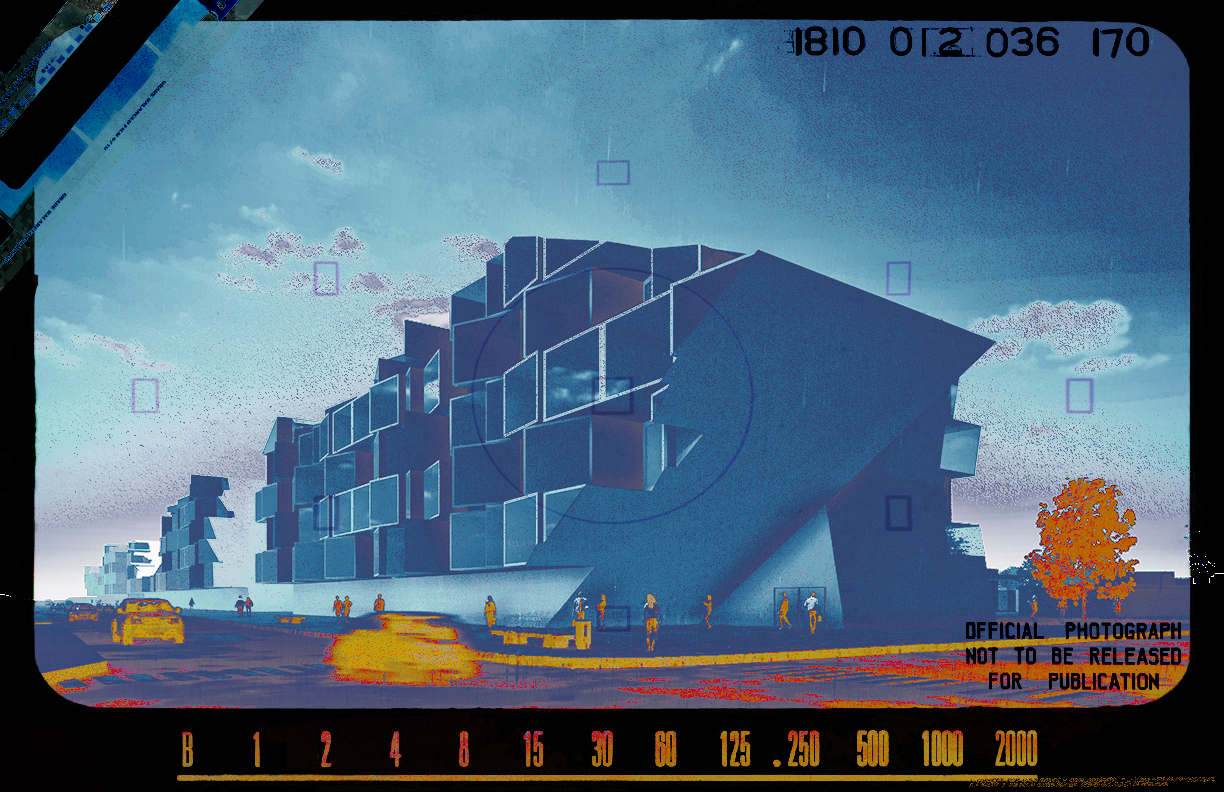

Step 03 redesigns the tract for collective living. The framework holds 30 to 45 dwelling units per acre of medium density, multi unit housing, plus non residential uses that support daily life. It began with a precedent study of the Aires Mateus retirement housing in Alcacer do Sal, Portugal, followed by form and aggregation studies. Density is balanced against access, privacy, outdoor space, light, and air for each dwelling.

00. overview

Rolling Springs Pavilion is the final project of ARCH 50206, Formation Logics, Spring 2026, following Part 1, Stone Thresholds, and Part 2, Choreographing Assemblies. A single surface, generated in Grasshopper, is draped over defined interior conditions to generate a flowing form. The surface lifts over a round stage, opening an oculus to the sky, and settles back to the ground along the water, shading smaller gathering spaces as it goes.

01. formation logic

02. the site

03. the pavilion

00. overview

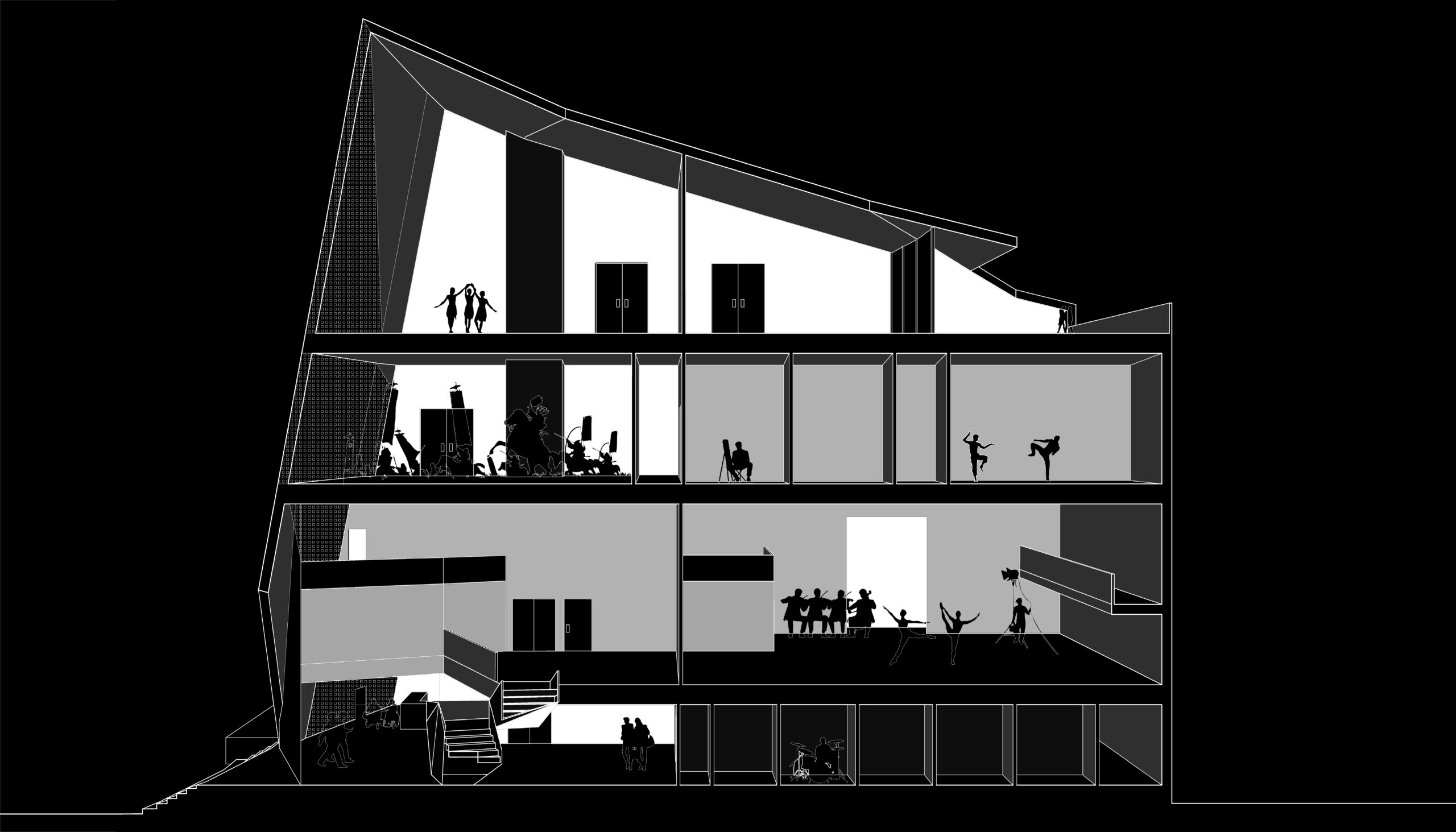

The Mound sits on Olive Street in St. Louis. Sitting across from Citypark Stadium, it houses performance spaces, dance studios and its main program: a black box theatre.

01. site analysis

Parks and rivers, transit routes, income patterns, and the Brickline Greenway Trail, mapped from the city scale down to the Olive Street block.

02. site plan

The building takes the west end of the block between Locust St and Olive St, its folded corner turned to N 22nd St and the stadium.

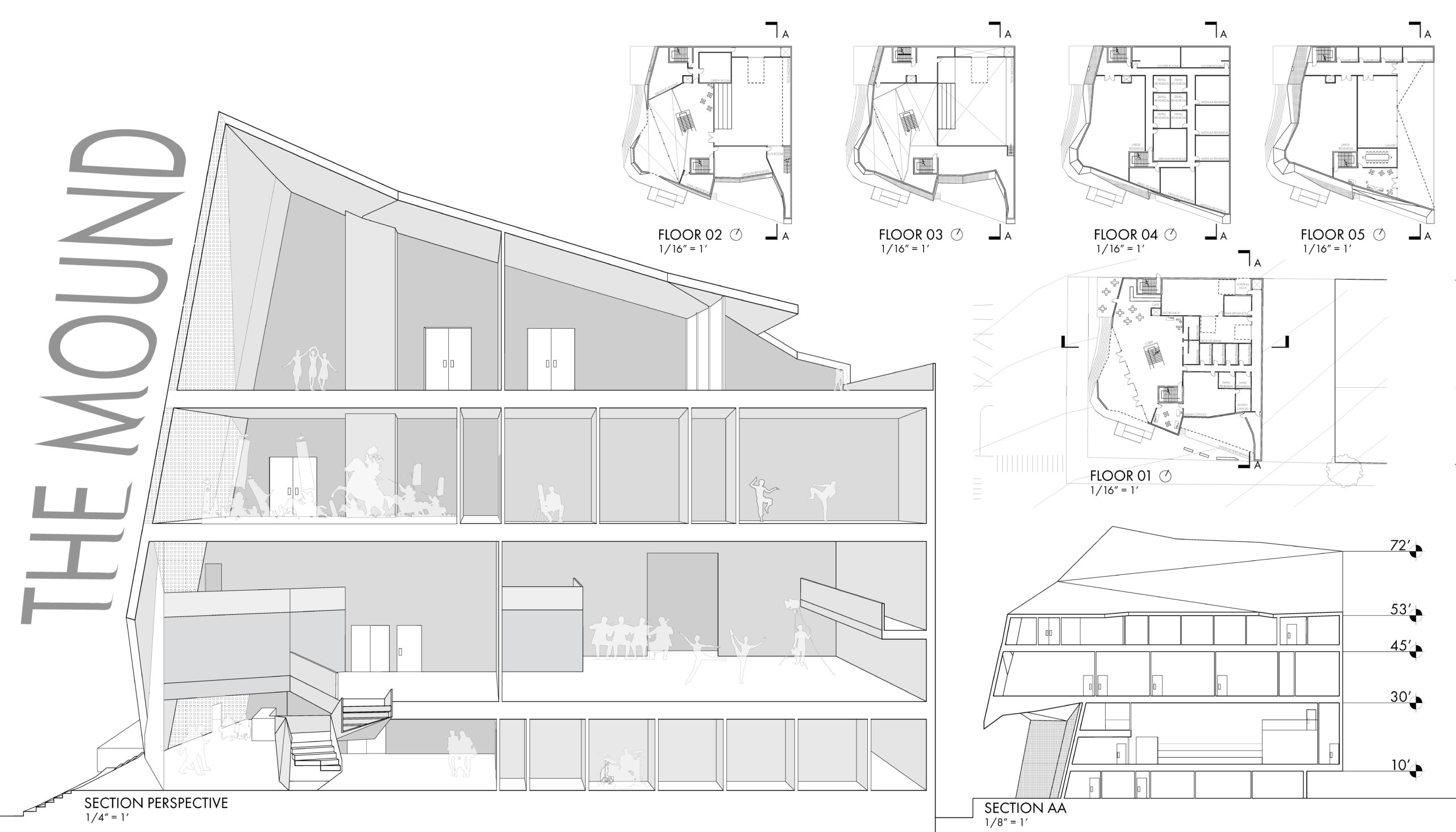

03. elevations

04. the building

Exterior and interior views, and the sectional model.

00. overview

Computational design is the thread that runs through my work: geometry written as rules, then pushed until it becomes a building, a surface, or a tool. This page collects both ends of that practice. First, a finished product, a Grasshopper plugin I designed and brought to life. After it, the coursework that trained the same skills: ARCH 50206, Formation Logics, a three-part sequence that moves from surface systems to aggregations to a full pavilion.

01. climbing wall generator

The Climbing Wall Generator is a compiled C# plugin for Grasshopper, version 1.3.5, sold on Gumroad and Food4Rhino and installable through Rhino's Package Manager. It turns any surface or polysurface into a buildable climbing wall, and carries the design all the way to a cut layout. Six components sit under one Grasshopper tab. 01 Wall Generator facets the surface into a climbing skin with bulges and leans, a guaranteed clearance offset, and an anchored T-nut bolt lattice. 02 Holds and Routes places a hold library onto the bolt points and deals the holds into color routes. 03 Holed Wall cuts the real bolt holes through the thickened wall.

04 Sections cuts true construction sections and builds the infill panels between the skin and the original surface. 05 Panel Layout flattens every facet into a numbered cut layout matched to sheet size, projects the panel numbers back onto the 3D model as a build guide, and exports DXF. 06 Bake All bakes walls, holds in their route colors, and section solids into the document on organized layers. The example definition that ships with the plugin carries a starter library of 15 holds, and any hold modeled flat on XY can be added to the library.

02. stone thresholds

Part 1 of Formation Logics builds surface systems in Grasshopper, each one a written logic chain. System 01, Adaptable Hex Grid, runs a hexagonal grid over a surface and lets point attractors scale, lift, and rotate the cells before lofting. System 02 subdivides diamond panels with dispatch and grafting, extruding along normals by distance from a point. System 03 morphs a divided grid in 3D under point attraction. System 04 adapts a triangular grid through graft, scale, rotate, move, and loft. The same systems then scale up to facades: a light shelf grid whose panel size and shelf depth are set by direct sun exposure hours, and a hexagon facade that rotates month by month, its openings widening in winter to admit sun and closing in summer to keep heat out.

The part ends with the STARFISH, a tensile pavilion for the tailgating green across from Donald W. Reynolds Razorback Stadium. The structure conforms to its hill: opaque where it meets the ground, its panel openings grow toward the peak so light reaches the ground below. Variations come from the starting polygon, the physics load, and the opening radius in the definition.

03. choreographing assemblies

Part 2, Interlocking Patterns and Aggregations, was group work with Mason Pahlow and Baron Scifres. It starts at the scale of a single module: interlocking units studied in Grasshopper, including aggregation with WASP, then tables and chairs built from the modules, tested through shadow studies and interior and exterior constraints. The question throughout is how much form a simple unit can produce when the rules for joining it are written carefully.

The aggregation then takes on sites. At Mount Sequoyah in Fayetteville, wooden cube modules stack into a sculptural tower on the overlook deck while loose pieces work as tables and chairs, so visitors arrange the installation themselves. The same module family becomes a six-unit garden sculpture for the Birmingham Botanic Garden, and a pavilion for Walker Park in Fayetteville, north of the skatepark on the Razorback Greenway.

04. the draped surface

Part 3 takes the surface logic of Part 1 to a full building. Form is found by draping a single surface over the interior conditions beneath it, simulated in Grasshopper: the surface lifts where the program needs height and settles where it does not. That definition produces the Hot Springs concert pavilion, documented in full as rolling_springs_pavilion.
